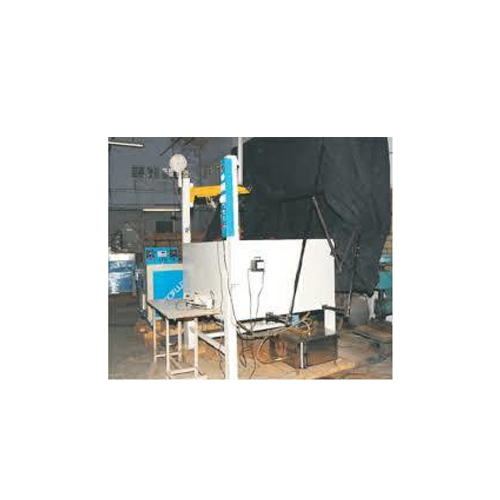

EECI Flux Horizontal Bench Type Equipment
350000.00 - 375000.00 INR
Product Details:
- Power 135 Ampere (amp)
- Material Metal
- Dimension(L*W*H) 1850x940x1780 Millimeter (mm)
- Voltage 230 Volt (v)
- Weight 850 Kilograms (kg)
- Supply Ability : 15-20 Unit Per Month
- Click to view more
X
Price And Quantity
- 1 Unit
- 350000.00 - 375000.00 INR
Product Specifications
- 1850x940x1780 Millimeter (mm)
- 230 Volt (v)
- Metal
- 135 Ampere (amp)
- 850 Kilograms (kg)
Trade Information
- 15-20 Unit Per Month
- 4-8 Week
- All India
Product Description
EECI Flux Horizontal Bench Type Equipment
- Contact shot for Circular magnetization & Coil shot for longitudinal magnetization of parts.
- 3000 Amps. AC & 3000 Amps FWDC, 4500 Amps. AC & 5000 Amps FWDC, 6000 Amps. AC & 6000 Amps FWDC, 8000 Amps. AC & 8000 Amps FWDC.
- Fabricated Frame (M.S.) with splash guard & wood grill assembly.
- Stainless Steel circulation tank of SS-304 Grade Material with Turbulence agitation system, Mono-Block Pump and Hand Nozzle.
- Rugged construction for reliable magnetic inspection. In-built power source with infinitely variable self-regulating current control.
- 5 turn 300-mm. dia base mounted coil.
- Pneumatically operated headstock with foot switch (100mm stroke length) & rail mounted hand-operated tailstock, both with steady rest for heavy job handling.
- Analog Ammeters with calibration facility.
- Control Panel with push bar assembly.
- In-built AC decay Demagnetization facility.
- Black color Inspection hood of resin for Fluorescent wet particle inspection of jobs under ultraviolet lights.
- AC/FWDC changeover by Selector Switch.
- Magnetization Time controlled by Logic Control PCB.
- Current assurance indicator with audiovisual facility.
Technical specification
Air supply | 5 Kg / cm2 FRL |
Tank Capacity | 40 Liters |
Part Weight Capacity | 80-90 Kgs. |
Part Length Capacity | 1750 mm |
Output Ports | 2 ports,230V,50 Hz |
Net Weight | 850 Kgs |
Input Supply | 415 V,50 Hz,2 Phase |
Input Current | 135 Amps |
Duty Cycle | 0.5 sec ON 5 sec OFF |
Dimension without Hood | 1850(L)x940(W)x1780(H) |
Coil Diameter | 300 mm |
